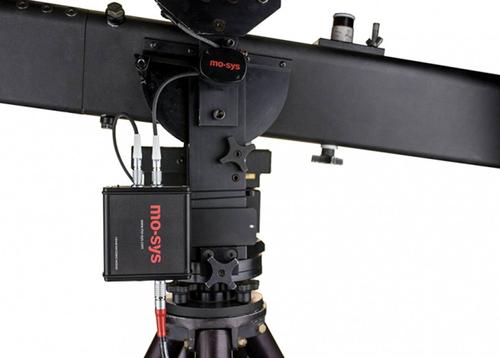

Requested by customers, we came up with a solution to encode Jimmy Jib cranes, jib arm and head, using our high-resolution absolute encoders.

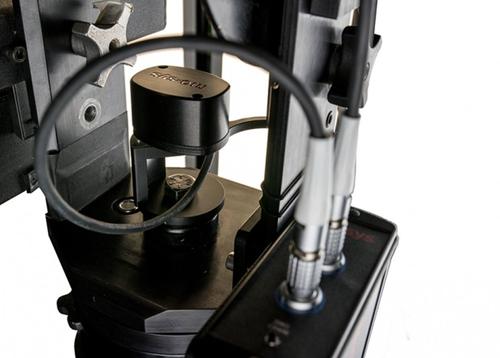

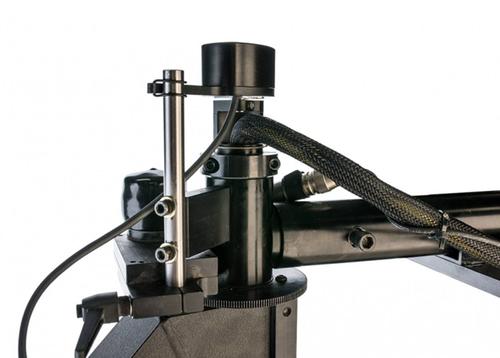

There is no need to change the motors, as the encoders are mounted directly which, in turn, results in no gearing and, therefore, zero backlash. But, a word of warning: because the Jimmy Jib has a very flexible arm it doesn’t lend itself to the use of virtual graphics. The flex in the arm is not taken into account by the encoders and it is possible to get a visible mismatch or drift if the arm is swung too fast. If you want a fully encoded crane for your virtual studio, the better solution is the e-Crane with its rigid arm and accurate data output.
| Weight | 2kg (4 lbs) |
| VR Encoder Resolution | 4 million ticks/revolution |
| Maximum System Ethernet Length | 200m (328 ft) (operating distance) |
| Maximum Operating Distance | 20km (12.4 mi) with fibre optics |
| VR Encoder Resolution | > 2 million counts per revolution |
| Power | 15-32V (24V nom) 6A (nom) 20A peak |
| Mains With PSU | 110V-200V |
The Mo-Sys bus cable with Lemo interface combines power and data in one cable for a tidy solution on set. Simply put the devices in a daisy chain, power up on one end and terminate the other.
A (24V/6A) power supply to power our systems.
A simple solution to terminate our system.
