Joining our growing range of innovative broadcast robotics, the RoboJib offers a simple solution to both studio broadcasting. Usually mounted in the air to a truss, RoboJib gives you a 360-degree bird's eye view of the action, permitting smooth sweeping shots of the anchor in the studio or live event.

Make an Enquiry

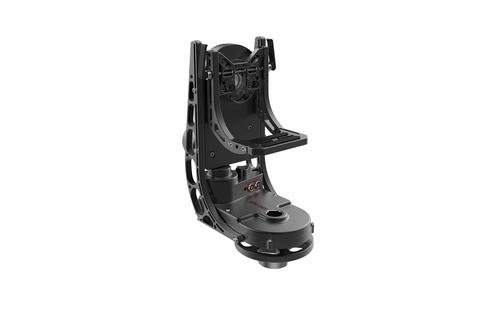

B20 head

It comes pre-installed with a B20 remote head that has zero backlash and can withstand a payload of up to 20kg. Specially designed with virtual set applications in mind, it has the same fast response and strong gears as our other heads, yet it is lighter and more cost efficient. What’s more, the optimised gear drives make it extremely quiet - which renders it perfect for live studio environments.

B20 head

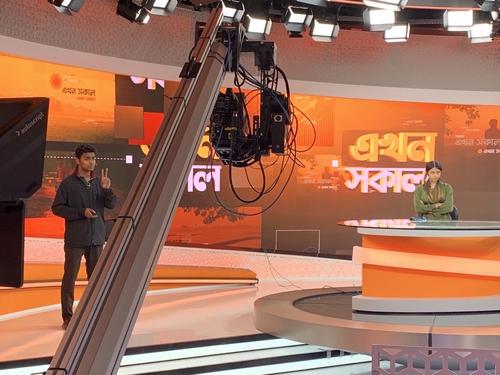

Built for the virtual world

The RoboJib can also be suspended from the ceiling for a clear studio floor and 360 sweeping shots around the studio. With augmented reality (AR) and virtual reality (VR) production becoming more and more popular, RoboJib features the very latest encoding technology ensuring that 3D graphics can be inserted into the live camera feed exactly where and when needed.

Built for the virtual world

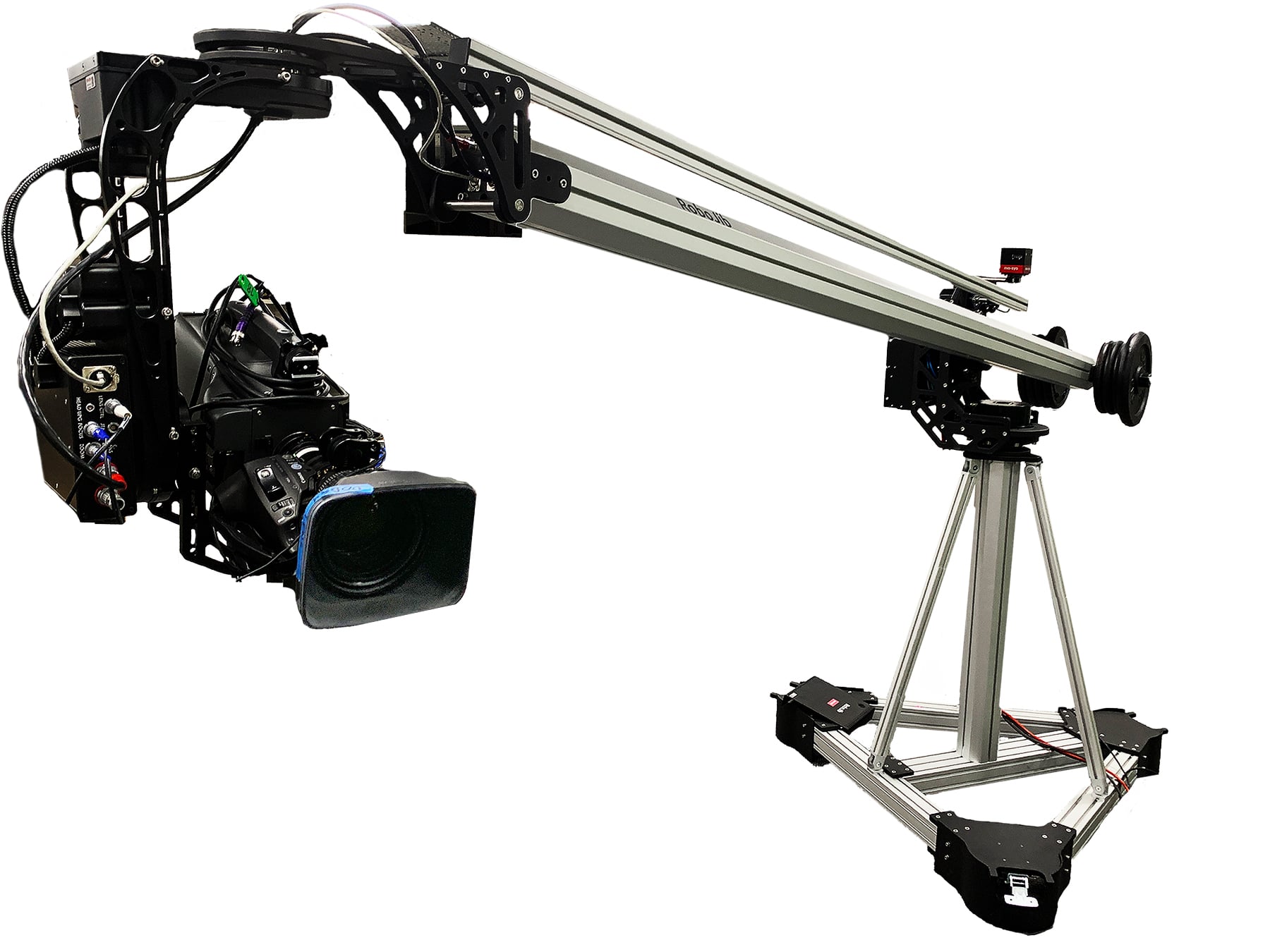

Multi-axis operation

With its 4-axes movement, operators can capture every possible angle, literally from the floor to the ceiling, and from wall to wall with impeccably smooth movement. Fully encoded to support AR and VR products, RoboJib is versatile and ideal for news studios, music and sports events, film and commercial productions. Based on our L40 remote camera head, the column of RoboJib features the same fully-encoded motors that make every movement and camera position programmable and repeatable in addition to capturing precise camera tracking data.

Multi-axis operation

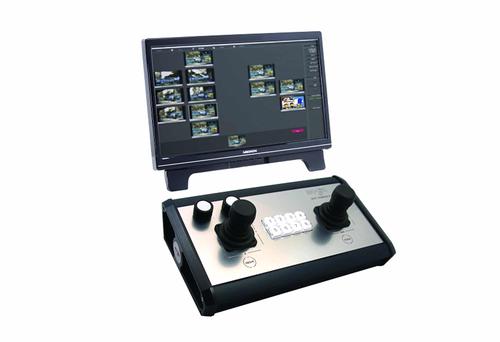

Simple Control Interface

The shotbox, either for PC with touchscreen or as a standalone single-operator console, can control the pan and tilt of both the jib and B20 head as well as the zoom and focus of the lens. Also, the shotbox offers a simple interface for storing and recalling positions.

Simple Control Interface
Technical Specifications
Weight 40 kg (88 lbs) excluding counter weights
Payload 20 kg (44 lbs)
Power 15-32V (24V nom) 6A (nom) 20A (peak)
Mains With PSU 110V-200V
Temp Range -20 degrees to +45 degrees
Length 2.5m (8.6 ft)
Column Height 0.5m-2m (1.6 ft-6.4 ft)
Jib Pan/Tilt Speed 30 degrees/sec
Head Pan/Tilt Speed 180 degrees/sec
Pan Range +/-720 degrees
Tilt Range 45 degrees (depending on mounting restriction)
Maximum System Ethernet Length 100m (328 ft)
Maximum Operating Distance 20km (12.4 mi)
Pan/Tilt Control Options Double-joystick for jib and head, shotbox console
VR Encoder Resolution > 2 million counts per revolution
