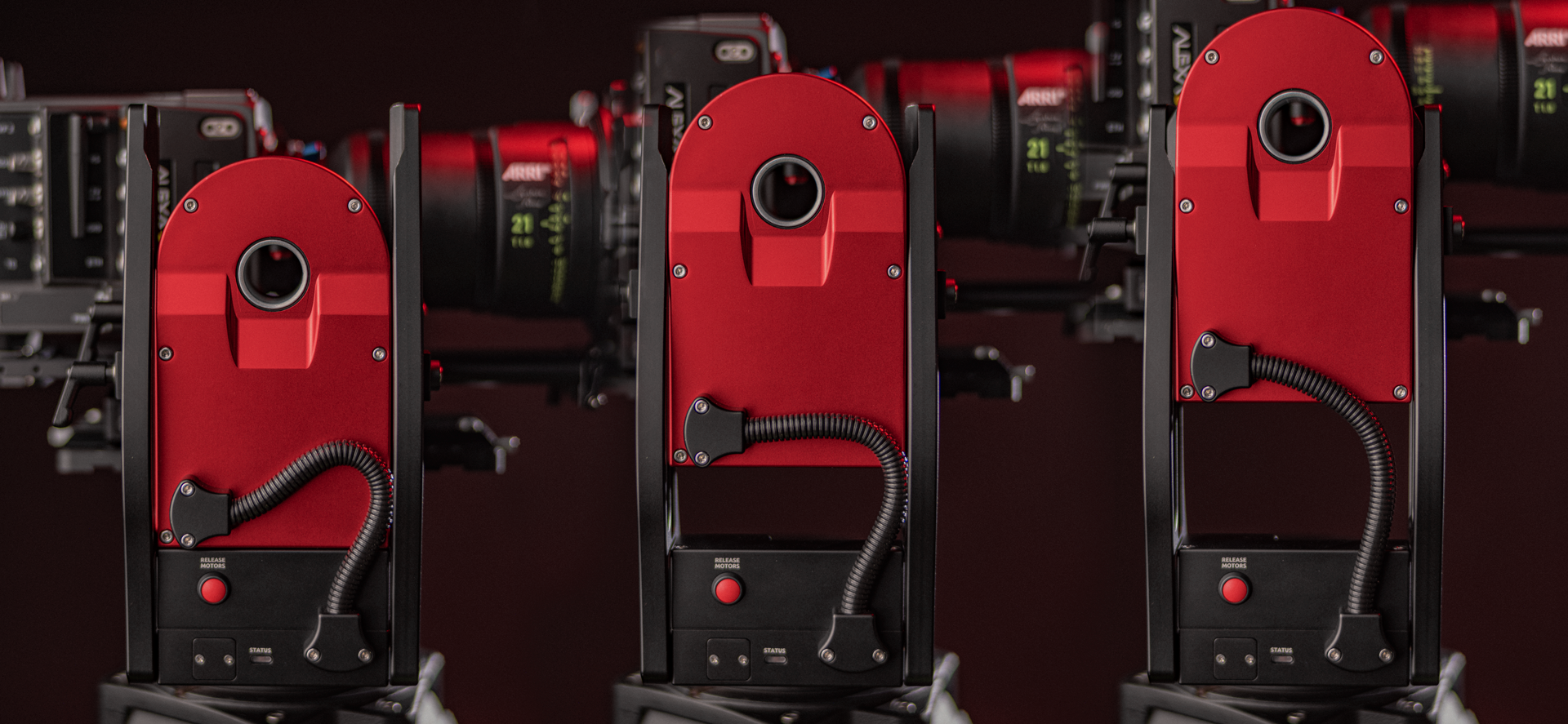

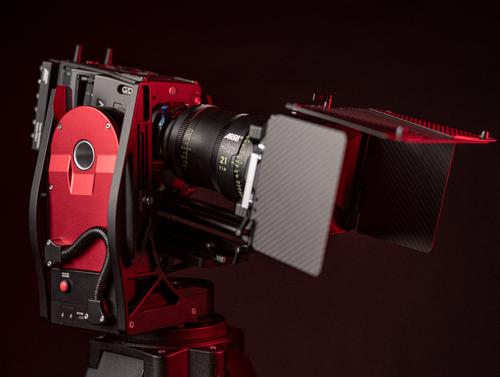

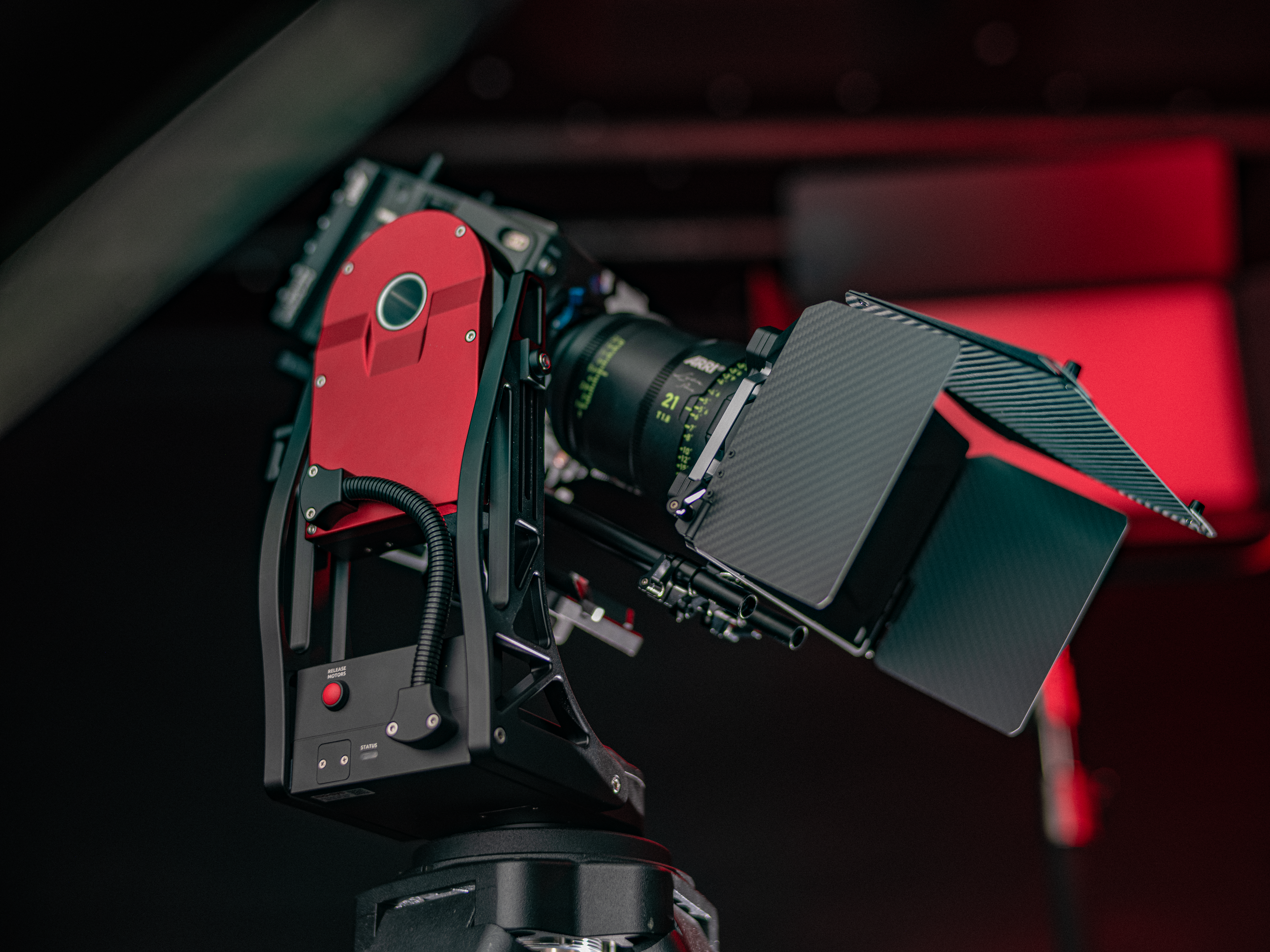

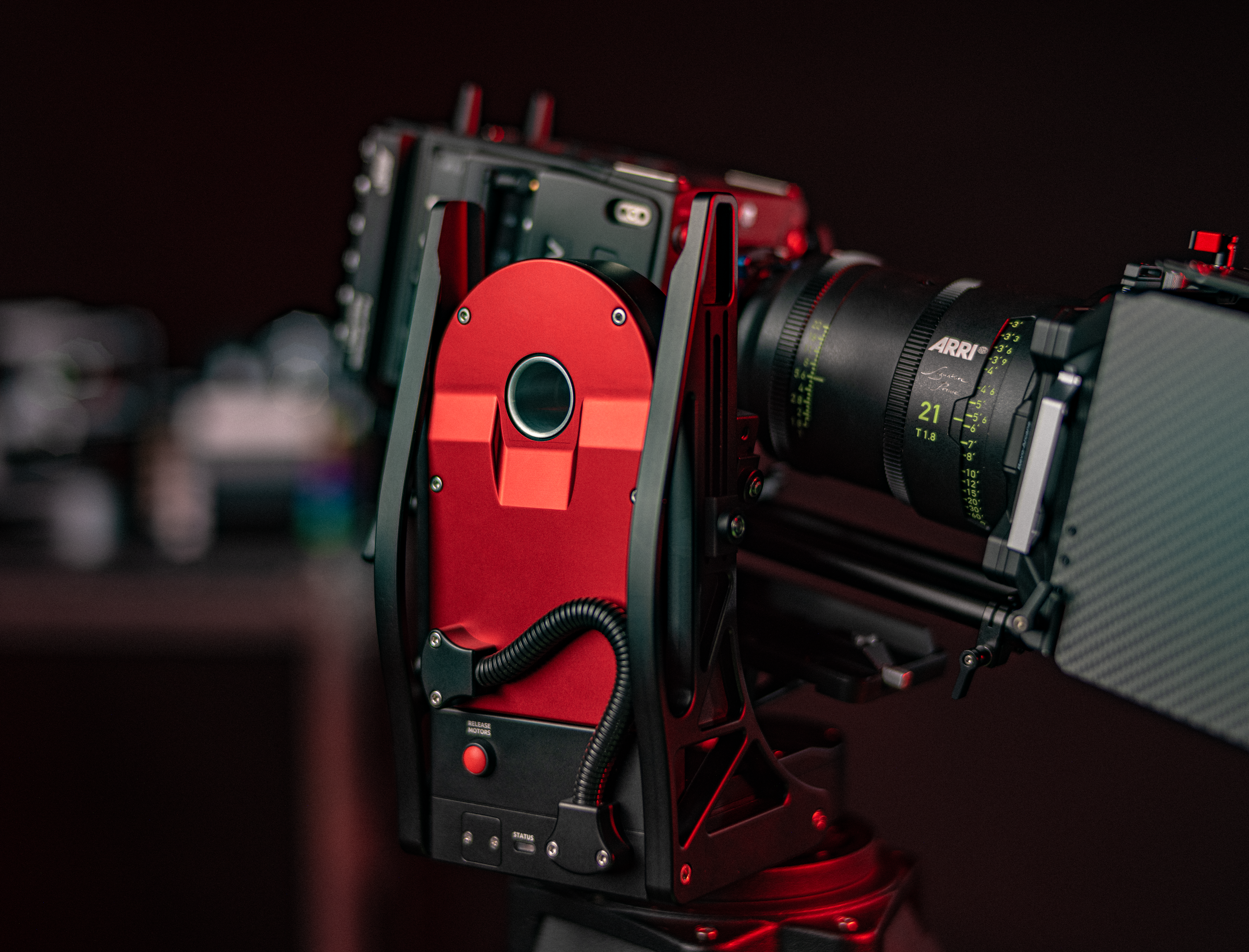

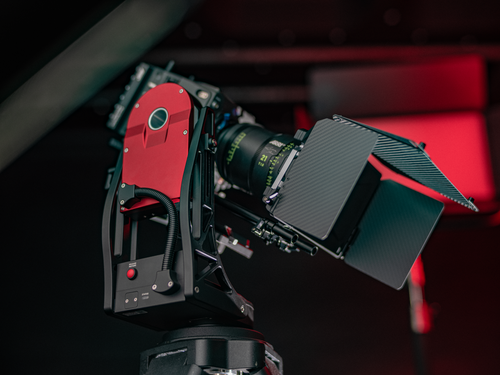

The L20 is the smallest 2-axis remote head for camera packages up to 20kg.
Delivers high-precision remote camera operation in a compact, quiet design.
Versatile and easy-to-deploy, with the precision for high-end film and the speed for sport and live broadcast.
Precision-engineered to strike the perfect balance between size and support for the most popular high-end camera packages up to 20kg.
The robust strength of a remote head with the size of a PTZ.
Mo-Sys’ patented JamDrive motors allow the L20 to deliver extraordinary speeds of up to 360° per second, for fast pans and whips, perfect for action sequences and high-speed sports coverage.

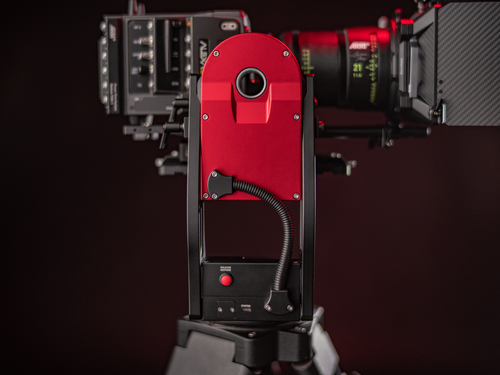

Ideal for shooting environments where sound is critical, the L20 features low-noise brushless motors for quiet operation, even in enclosed spaces such as car interiors.
Key Features:
- Ultra-compact design - offers the precision of the L40 but in a smaller, quieter, and more portable form. Its compact size is perfect for tight filming spaces, such as car interiors
- Extraordinary speeds of up to 360° per second
- Patented JamDrive technology
- Zero backlash for precise movements, eliminating slack take-up
- Quiet operation, ideal for sound-sensitive environments from classical concerts to car interiors
- Low latency - shares the same smooth, responsive performance as the rest of the Mo-Sys remote head fleet

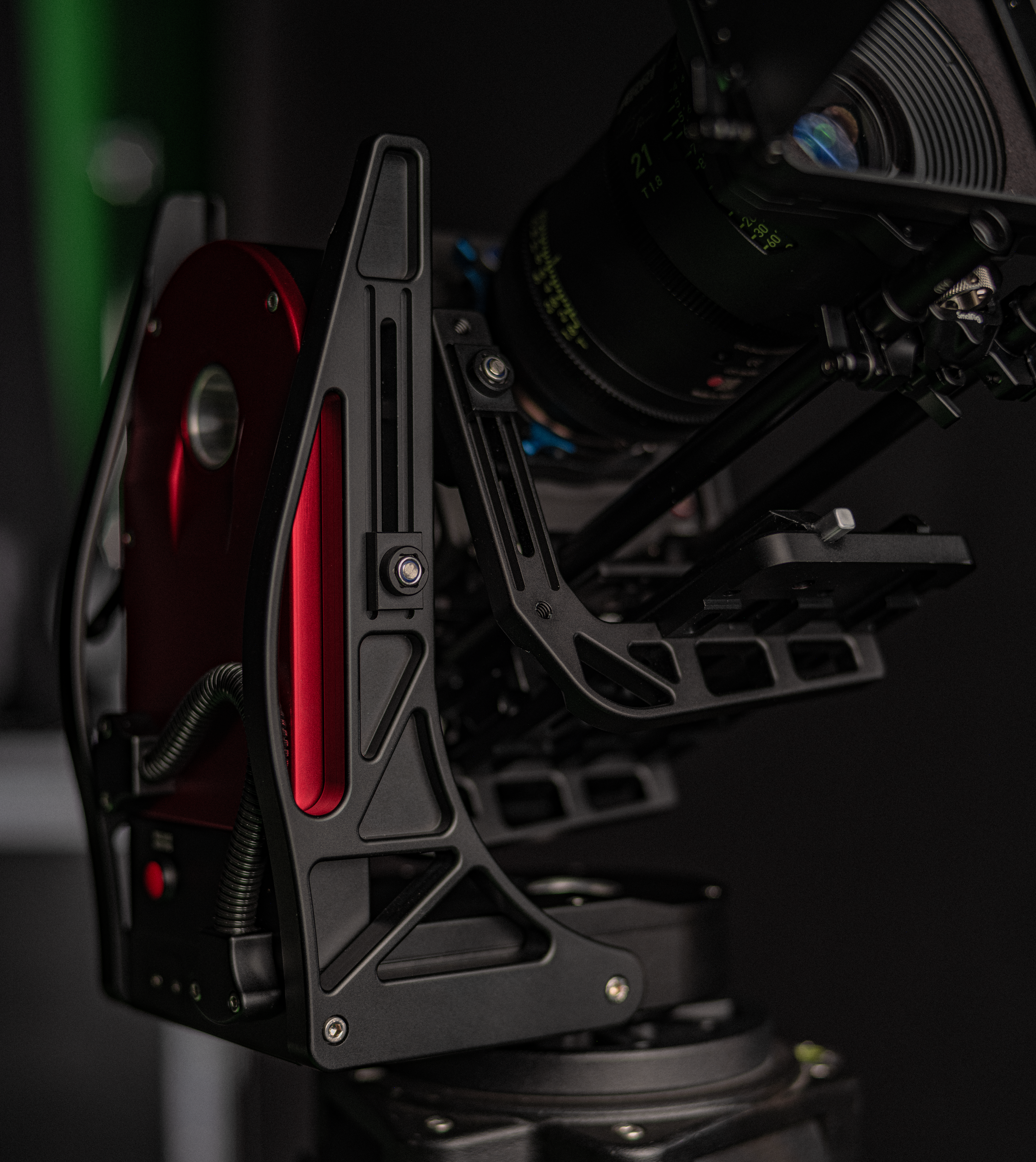

- Durable Construction: Built with an all-metal frame, the L20 offers Mo-Sys’s rugged reliability, free of the plastic components typical in PTZ systems
- Optional Add-Ons: Enhanced functionality with optional lens encoding and control modules
- Back-Pan Capability: Compensates for crane movements, ensuring consistent framing during dynamic shots
- Optional Broadcast Plates and Shoe Mount Plates available
Technical Benefits
- Large cable hole for easy connectivity
- Fully compatible with all Mo-Sys camera head accessories
- Easy integration into existing setups
- Packaged in a compact case to minimize transport volume
| Pan/Tilt Range | ±3 revolutions (limited by cable twist) |
| Weight | <6kg |
| Payload | 20kg |
| Pan/Tilt Speed | 360°/sec |
| Power | 12V-30V (24V nominal), 3A nominal (10A peak) |
| Mains With PSU | 100V-240V, 50Hz-60Hz |

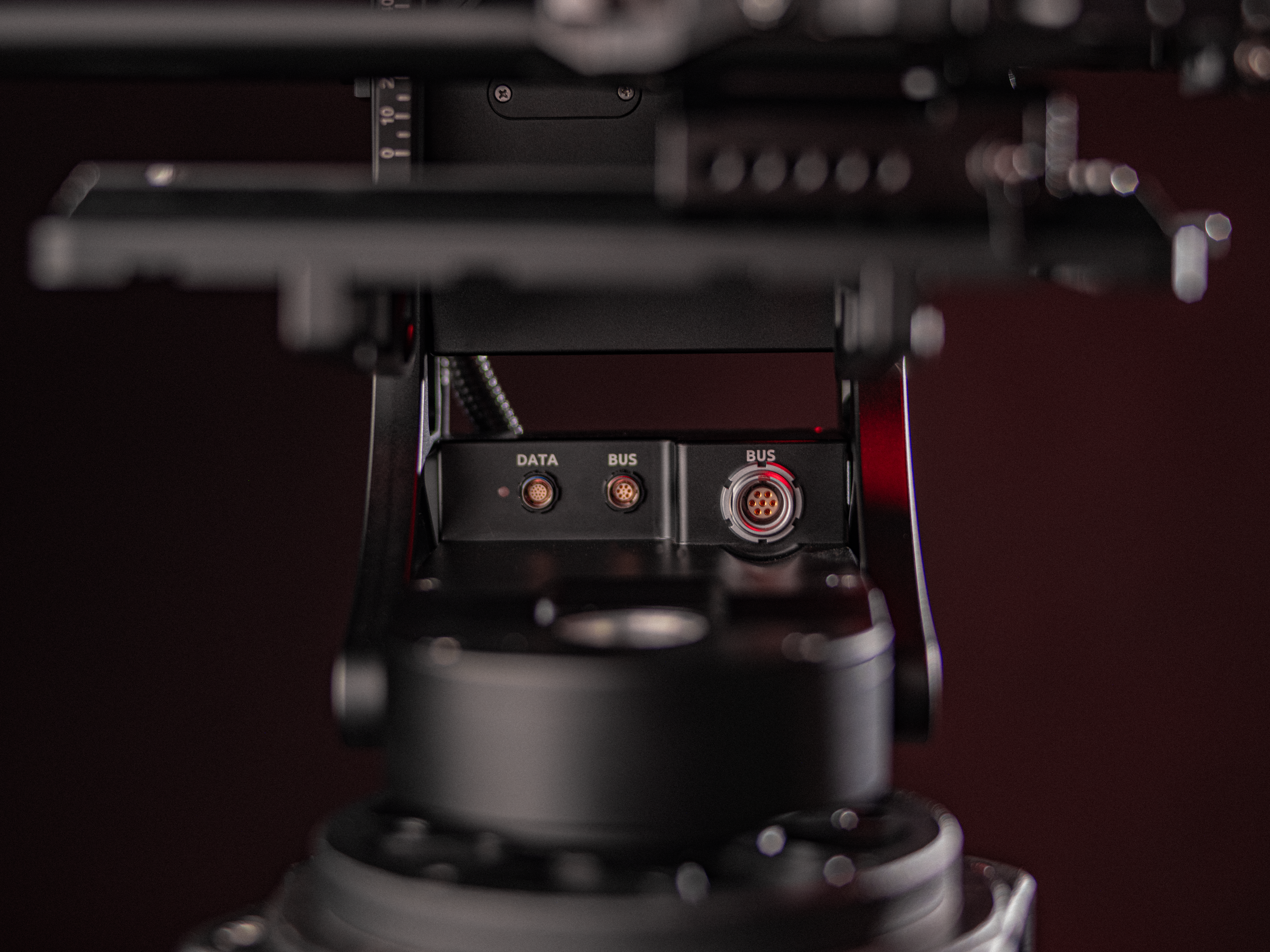

| Max system bus length (operating distance) | 100m |
| Max operating distance with optional radio | 300m |
| Pan/Tilt Control Options | Pan bar, Hand wheels, Broadcast console |
| Max operating distance with optical fibre bridge | 20km (no upper limit with repeaters) |
Yes, the L20 can be used as a remote head for AR graphics when paired with the right optional control and encoding modules. Its precision and remote operation make it suitable for productions that need accurate camera movement data.
Yes, the L20 is built as a compact remote head with a small, lightweight frame under 8kg, which makes it easier to fit into confined locations. Its compact design is useful when you need a small remote head that still supports professional camera payloads.
Yes, the L20 includes back-pan capability, which helps compensate for crane movement and maintain consistent framing during dynamic shots. That feature makes it appealing for film remote head workflows and other articulated camera setups.
While the head is of similar size to PTZ camera systems, the L20 offers an all-metal construction and professional broadcast-grade handling for higher-end camera packages. It is designed for users who want the better image quality and control, while maintaining a smaller system footprint.
The L20 uses low-noise brushless motors and is designed for quiet operation, even in sound-sensitive environments such as car interiors. That makes it a good choice when you need a quiet remote camera head without sacrificing performance.
Yes, the L20 is a fast remote head with extraordinary pan and tilt speeds up to 360° per second. This makes it suitable for fast pans, whip moves, and live action where responsiveness matters.
Yes. the L20 is encoded as standard, but can also be enhanced with optional lens encoding and control modules. This helps expand its use in technical workflows where camera data matters.

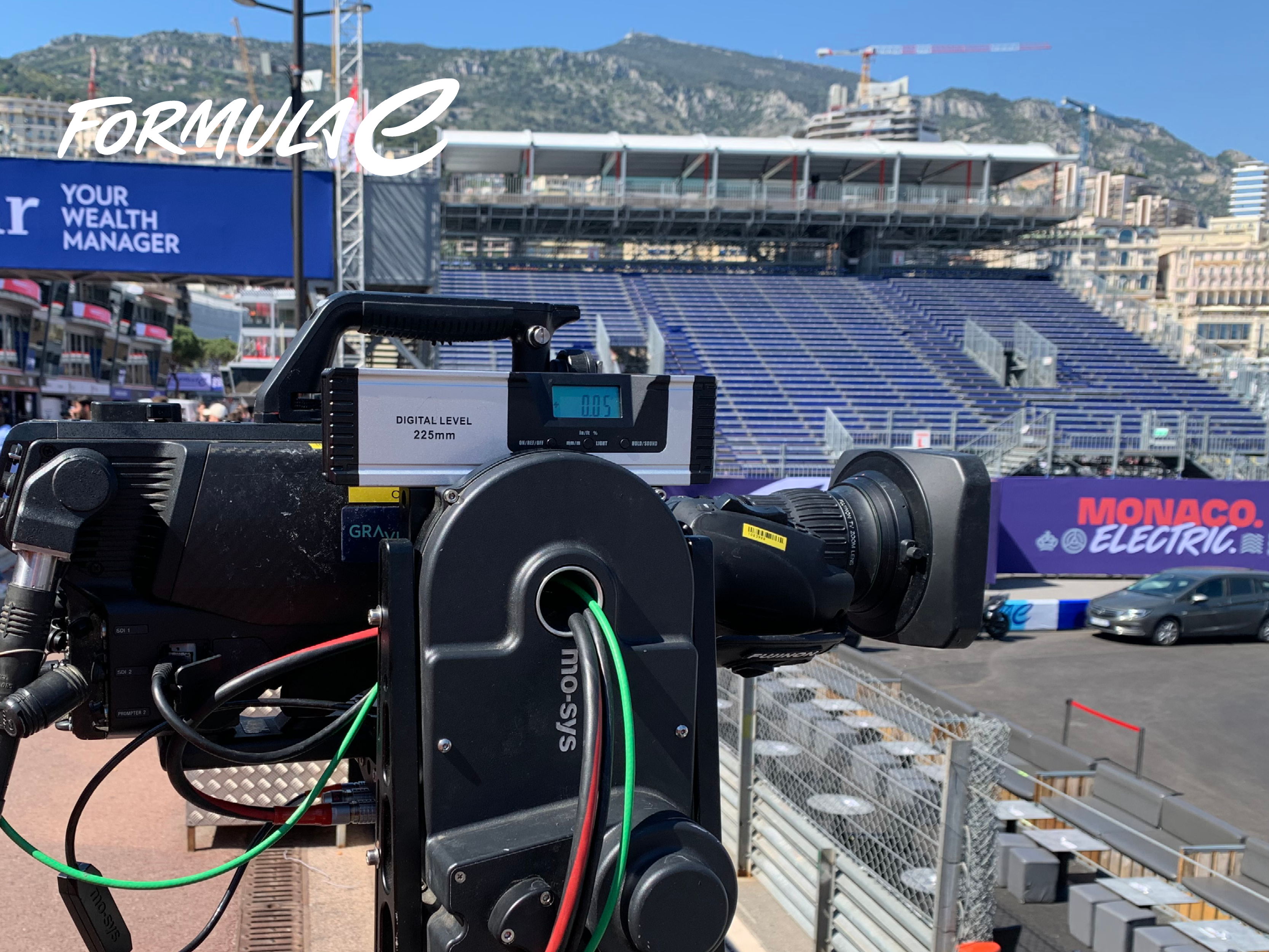

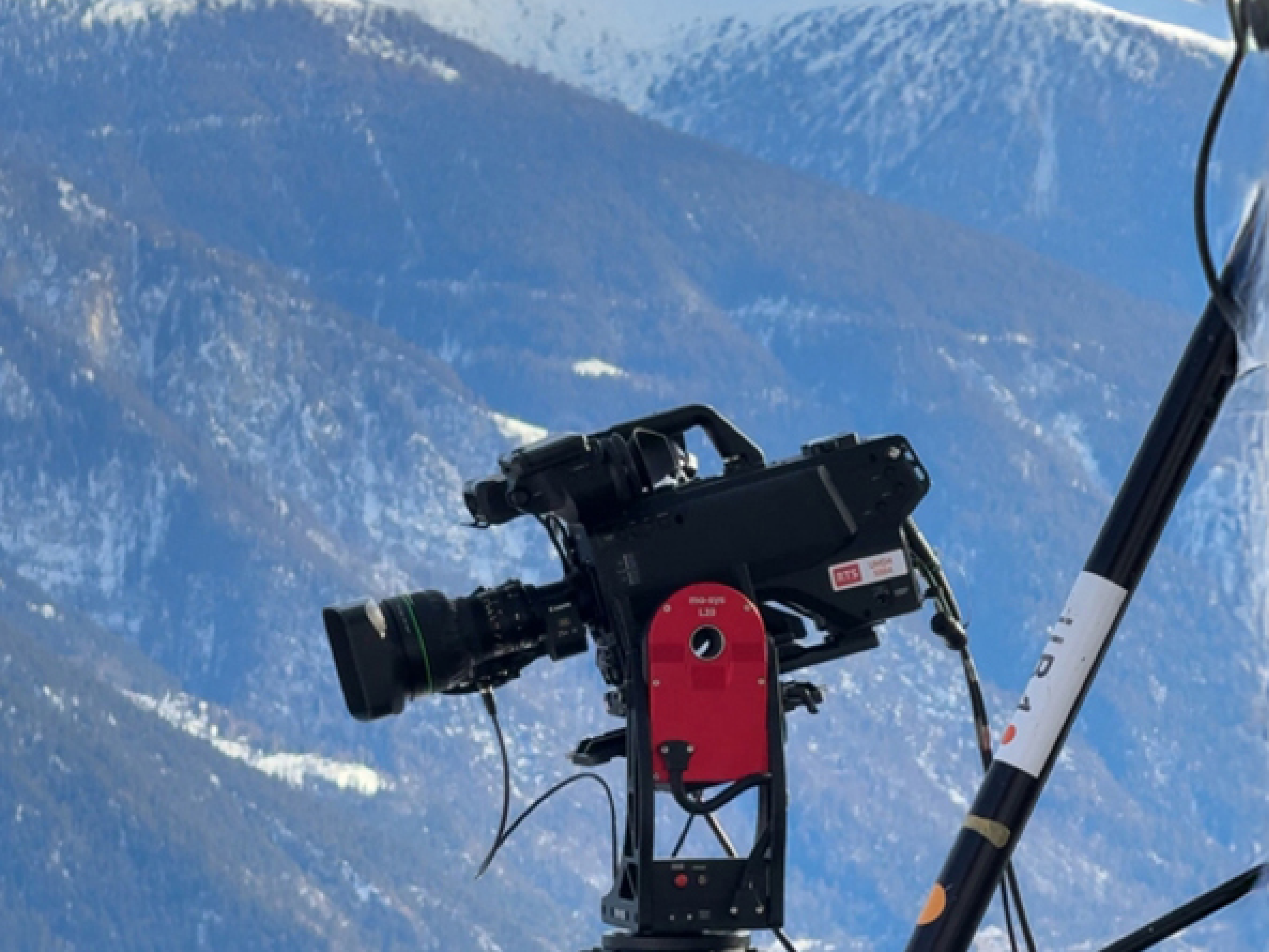

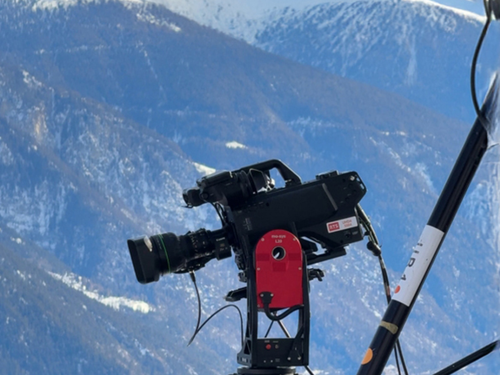

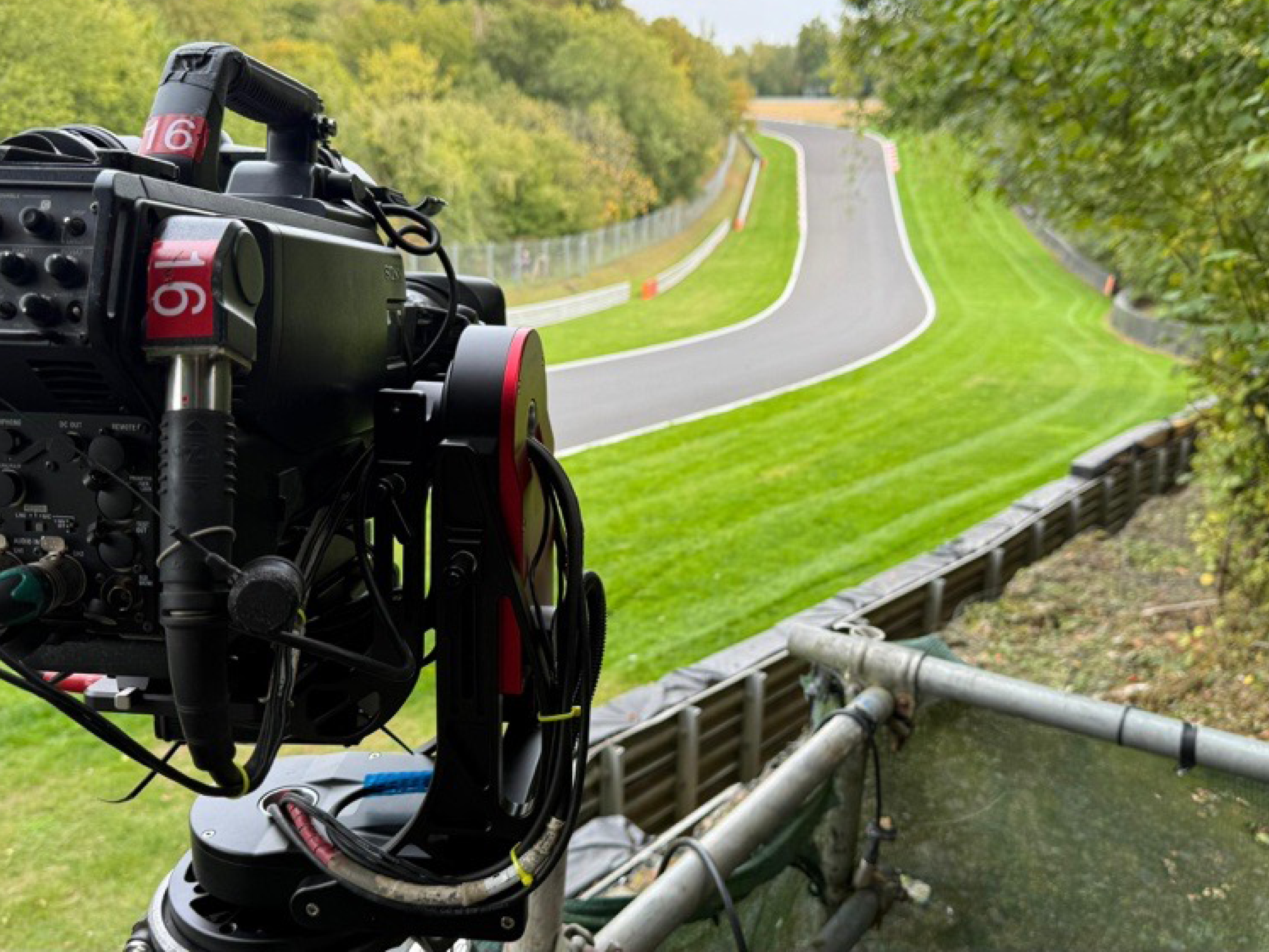

Yes, the L20 is well suited to broadcast and sports broadcast because it delivers fast, accurate movement with pan and tilt speeds up to 360° per second. That speed makes it a strong fit for action sequences, live sports, and other fast-moving productions.
The Mo-Sys L20 is a compact 2-axis remote head designed for camera packages up to 20kg, with a small footprint and quiet operation for broadcast and film work. It is positioned as the smallest remote head in the Mo-Sys range and is built for high-precision remote camera control.
The L20 supports a max system bus length of 100 meters, with optional radio operation up to 300 meters and optical fibre bridge operation up to 20 km. That gives production teams flexibility for remote head for AR graphics, sports broadcast remote head, and other studio or OB applications.
