MoRail enables creative moves using PTZ / ENG cameras in a cost-effective, high-performance package. The perspective change, as the camera tracks or orbits the presenter, dramatically improves on stationary PTZ camera coverage, immersing viewers without the cost and complication of track-based dolly systems.
MoRail is also compatible with ENG camera systems when integrated with the Mo-Sys L20 Remote Head, for a simple yet elegant solution to deliver programmable and live controlled camera movement. A powerful Mo-Sys controller is used to set camera position in addition to pan, tilt, zoom, focus and iris.

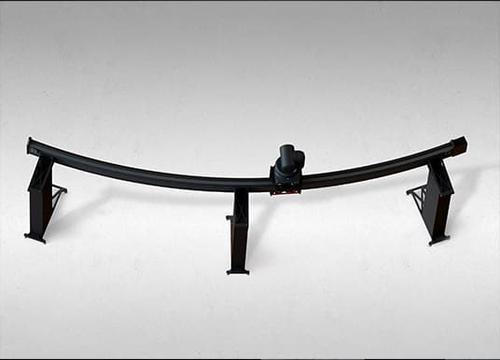

MoRail is available in 3m or 6m lengths, either straight curved, offering production teams maximum creative freedom. Motorized, height adjustable legs ensure fast studio set up, moving the camera plane quickly within a 580mm range of base height, to match presenter eye height.

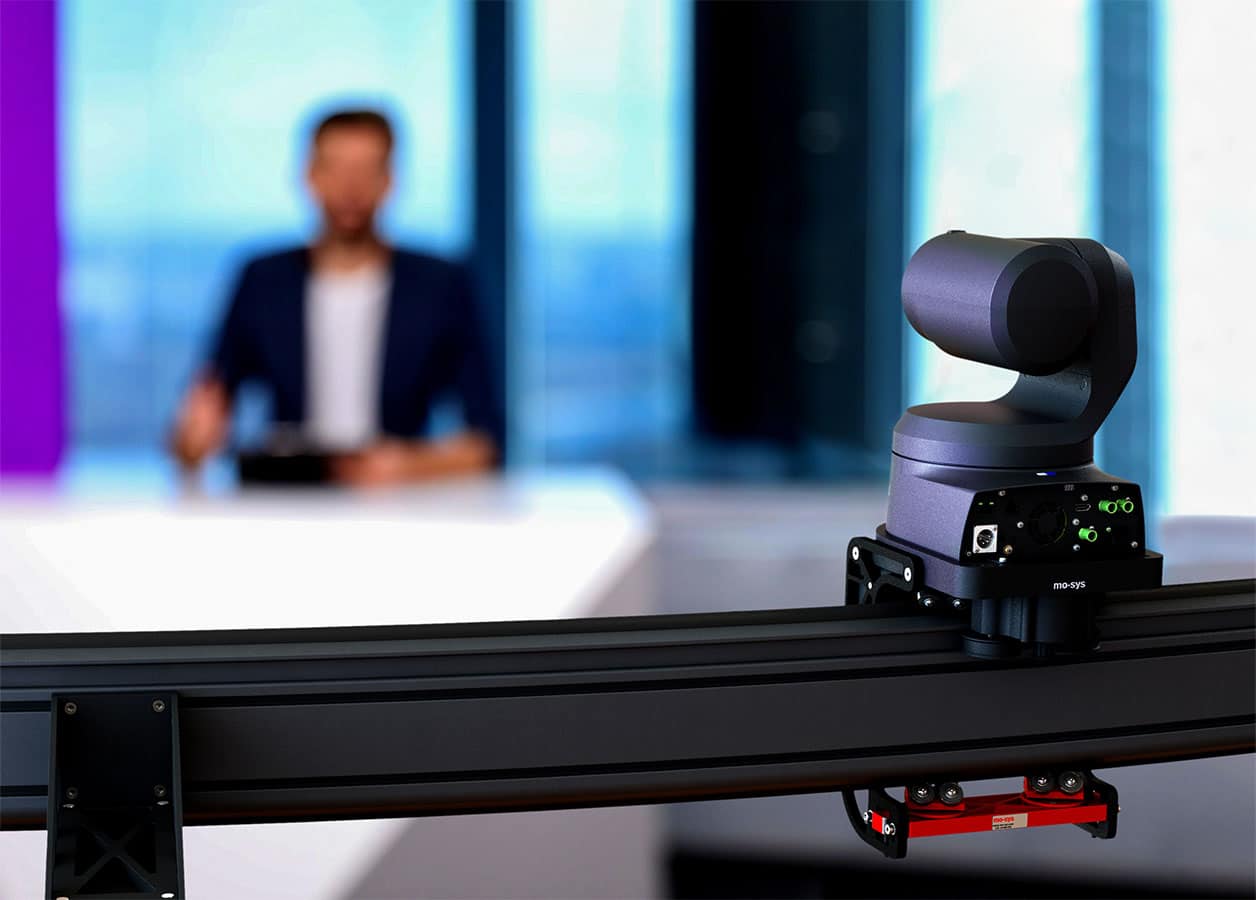

MoRail gives PTZs new creative potential. Production teams can now program accurate and repeatable PTZ movement to traverse or orbit presenters, achieving beautifully smooth and immersive parallax movement.
MoRail has a clean and non-industrial design – ideal for visibility in prestige studio installations. The internal energy chain system provides sophisticated cable management that hides the clutter and excessive footprint of traditional robotic dolly solutions.
| Camera Payload | 15kg |
| Number of cameras per rail | 1 |
| Cable management | Integral energy chain |
| Mo-Sys controller | MoRail height, camera movement and PTZ focus, iris & zoom |
| PTZ compatibility | Sony, Canon, Panasonic, BirdDog |
| Length | 3m or 6m (custom lengths <6m available on request) |
| Options available | Straight / Curved |
| Height Adjustable Range | 580mm (from base height) |
| Maximum off-air travel speed | 1 m/sec (approx.) |
| Curved Rail Radius | 4m fixed |
| Maximum on-air travel speed | 30 cm/sec (approx.) |
| Curved Rail Orbit | 3m rail = 45° / 6m = 90° |
